PCB 제작 가능 범위
특수 자재 사용이나 정밀 공차 적용 등 기타 요청 사항은 당사 메일(kmtek@kmtek.co.kr)로 연락 부탁드립니다.
FR4 PCB 제조 사양
| Items | Capabilities |
|---|---|
| Layer Count | 1 – 32 Layers |
| Max Board Dimension | 24 × 24″ (610 × 610 mm) |
| Copper Thickness | 0.5 oz – 30 oz |
| Min Board Thickness | 0.15 mm |
| Max Board Thickness | 6.0 mm – 8.0 mm |
| Min Line Width / Line Space | Normal: 4/4 mil; HDI: 2/2 mil |

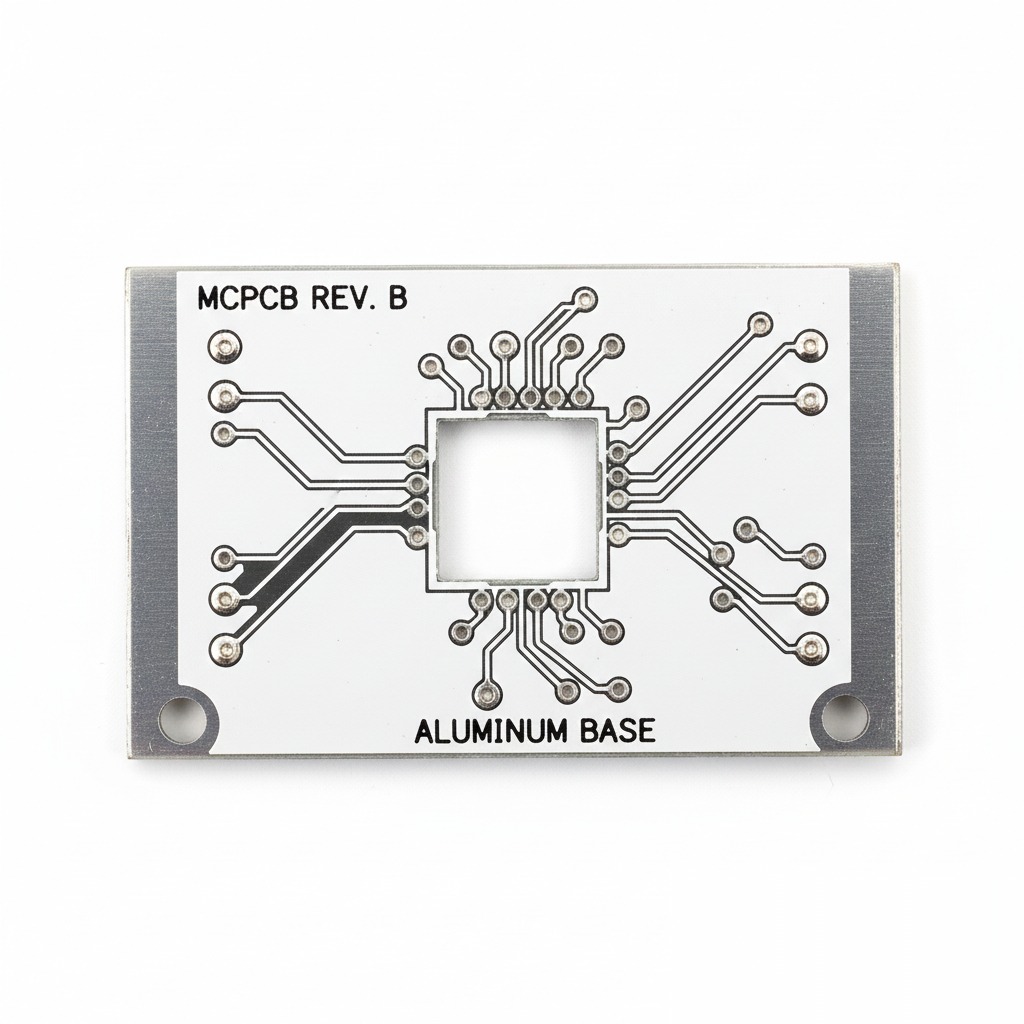

Metal PCB 제조 사양
| Items | Capabilities |
|---|---|
| Layer Count | 1 – 10 Layers |
| Max Board Dimension | 24 × 64″ (610 × 625 mm) |
| Copper Thickness | 0.5 oz – 10 oz |
| Min Board Thickness | 0.3 mm – 2.0 mm |
| Max Board Thickness | 4.0 mm |
| Min Line Width / Line Space | 4/4 mil (0.10 / 0.10 mm) |

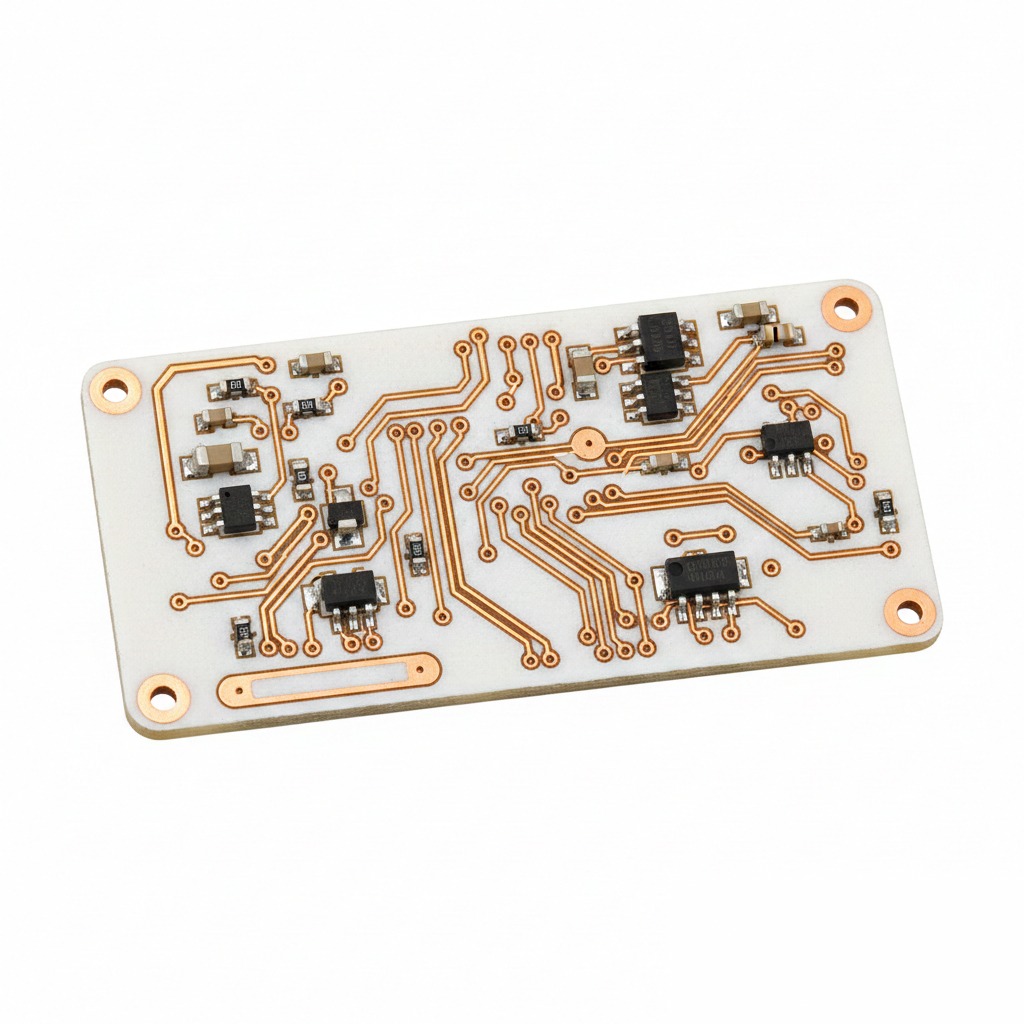

Ceramic PCB 제조 사양
| Items | Thick Film | DCB/DBC | DPC | AMB |
|---|---|---|---|---|
| Layer Count | 1 – 10 Layers | 1 – 2 Layers | 1 – 2 Layers | 1 – 2 Layers |
| Max Board Dimension | 138 × 190 mm | 138 × 178 mm | 138 × 190 mm | 114 × 114 mm |
| Conductor Thickness | 5 µm – 13 µm | 3.9 oz – 8.6 oz | 2 µm – 200 µm | 8 oz – 22.9 oz |
| Min Board Thickness | 0.25 mm | 0.30 – 0.40 mm | 0.25 mm | 0.25 mm |
| Max Board Thickness | 2.0 mm | 1.3 mm / 1.6 mm | 2.0 mm | 1.8 mm |
| Min Line Width / Line Space | 6/8 mil (0.15 / 0.2 mm) | 12/12 mil (0.3 / 0.3 mm) | 6/8 mil (0.15 / 0.2 mm) | 20/20 mil (0.50 / 0.50 mm) |
Flex PCB 제조 사양
| Items | Capabilities |
|---|---|
| Layer Count | 1 – 30 Layers |
| Max Board Dimension | 500 × 2000 mm |
| Conductor Thickness | 1/3 oz (12 µm) – 4 oz (140 µm) |
| Min Board Thickness | 0.05 mm |
| Max Board Thickness | 3.0 mm |
| Min Line Width / Line Space | 0.05 mm (2 mil) |

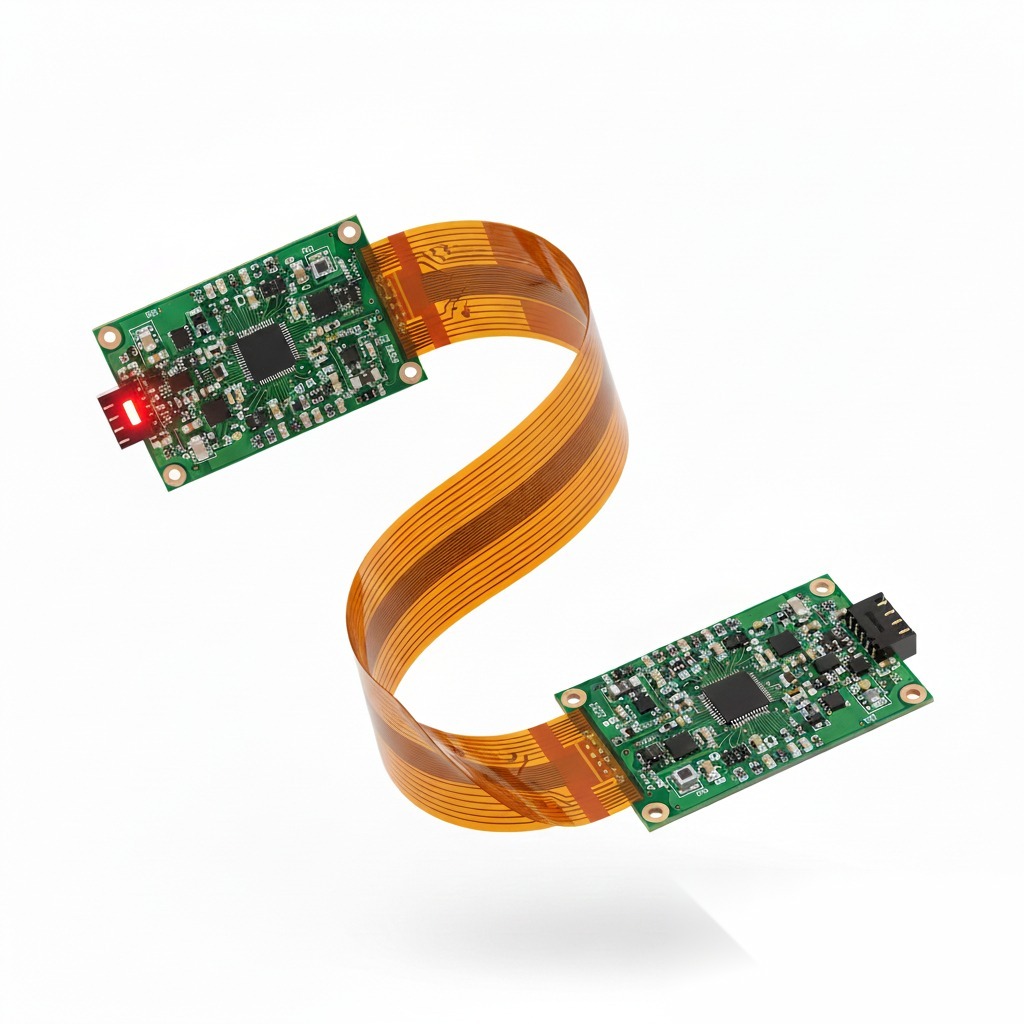

Rigid-flex PCB 제조 사양
| Items | Capabilities |
|---|---|
| Layer Count | 2 – 50 Layers |
| Max Board Dimension | 500 × 500 mm |
| Conductor Thickness | 0.5 oz (18 µm) – 2 oz (70 µm) |
| Min Board Thickness | 0.30 mm |
| Max Board Thickness | 4.0 mm |
| Min Line Width / Line Space | 0.075 mm (3 mil) |
